Professional underfloor heating installation for residential and commercial projects across the UK.
Floor Heat Innovation Ltd specialises in the preparation and installation of complete underfloor heating systems for new builds, apartments, residential developments and commercial construction projects.
Our work begins once the structural floor base has been completed and is ready for the underfloor heating build-up. From this stage, our team installs the required floor preparation, insulation and UFH pipework according to the project specification.

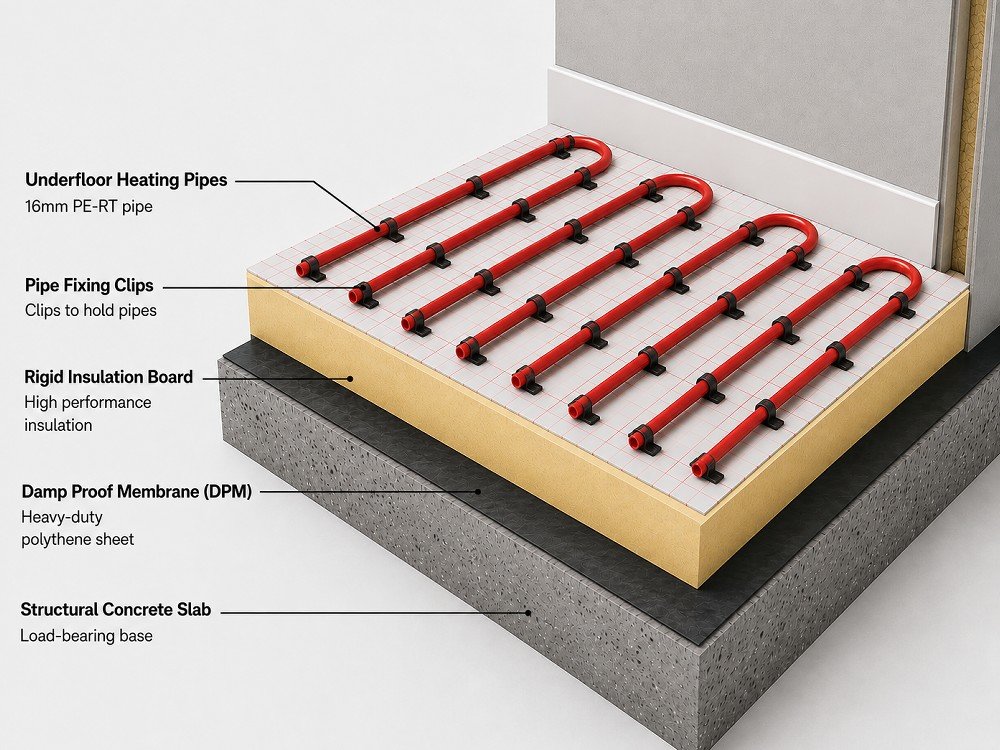

Our Installation Process
01 – Existing Structural Floor Base
The structural concrete slab or other specified structural floor is completed by the main contractor before our installation begins. We check that the area is suitable and ready for the required floor build-up.
02 – Damp Proof Membrane (DPM)
Where required by the project specification, we install the DPM over the prepared structural base, creating the required protective layer beneath the insulation system.
03 – Rigid Insulation Installation
We install rigid insulation boards to the specified thickness and layout. The boards are carefully positioned to create a stable and properly prepared base for the underfloor heating system.
04 – UFH Pipe Fixing System
Pipe fixing clips are installed to securely position the heating pipes and maintain the required spacing throughout the floor area.
05 – Underfloor Heating Pipe Installation
UFH pipework is installed according to the project drawings and heating design. Our installers maintain accurate pipe spacing and carefully form each heating circuit across the required areas.
06 – Connection & Pressure Testing
Where included within the project scope, the pipework is connected to the manifold and pressure tested to verify the integrity of the installed system before the next construction stage begins.
What We Install
Our underfloor heating service can include:
- Floor preparation for the UFH build-up
- Damp Proof Membrane (DPM)
- Rigid insulation boards
- Edge insulation where required
- UFH pipe fixing clips/systems
- Underfloor heating pipework
- Manifold connection where required
- Pressure testing
- Preparation and handover for the next construction stage
Where Our Work Begins and Ends
The structural floor itself is not constructed by Floor Heat Innovation.
Our installation begins on the completed structural floor, preparing and building the required layers from the DPM and insulation through to the complete underfloor heating pipework.
After installation and testing, the UFH system is left ready for the next stage of the floor construction in accordance with the project specification.
Built for Construction Projects
Floor Heat Innovation works with main contractors, developers, builders and mechanical contractors on projects ranging from individual properties to multi-apartment developments and larger commercial sites.
Our teams can integrate with existing construction programmes, coordinate with other trades and deliver the UFH installation efficiently and to the required project specification.
Precision at Every Stage
A reliable underfloor heating system starts with correct preparation. Accurate insulation installation, secure pipe fixing and consistent pipe spacing all contribute to the performance of the completed system.
We focus on precision, reliability and quality workmanship from the first preparation layer to the final pressure-tested UFH system.
See It in Action

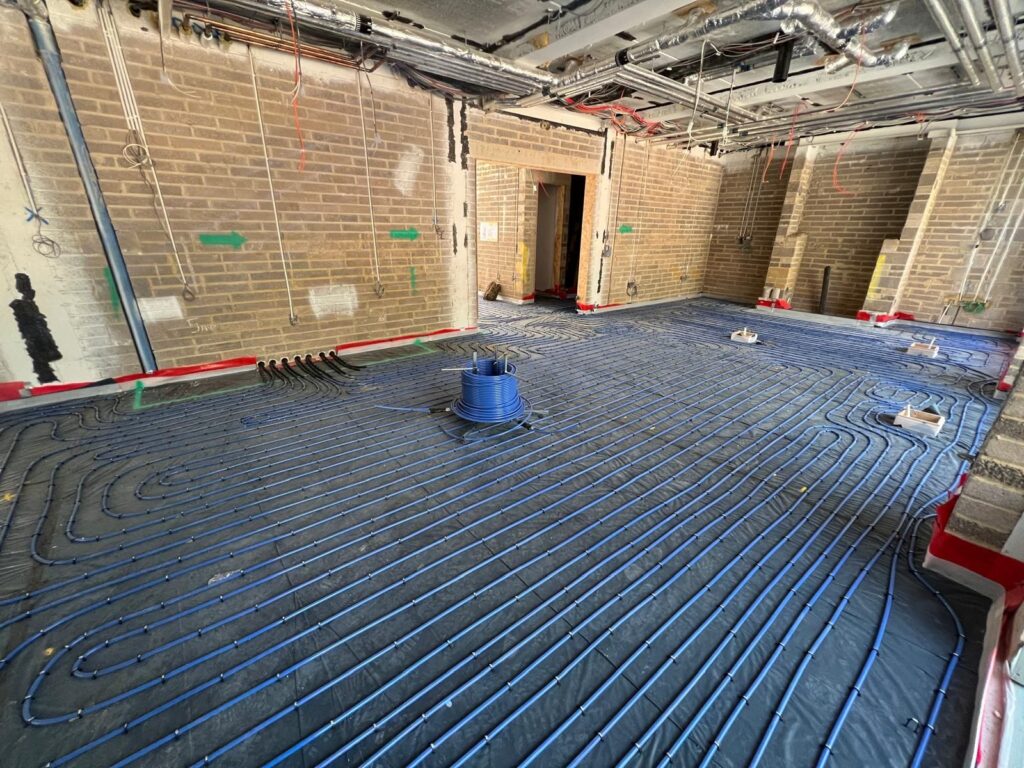

See how we apply this installation process on a real project in Ascot, from floor preparation through to completed UFH pipework and pressure testing.
